TA - 6 to 9 tons
High performance, high output

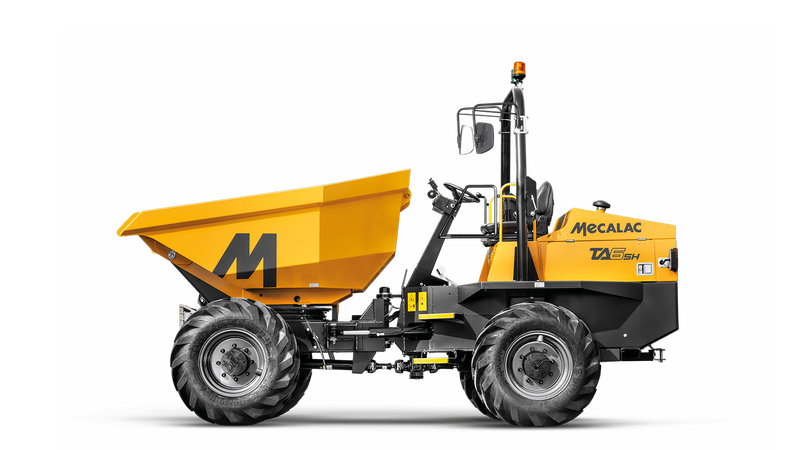

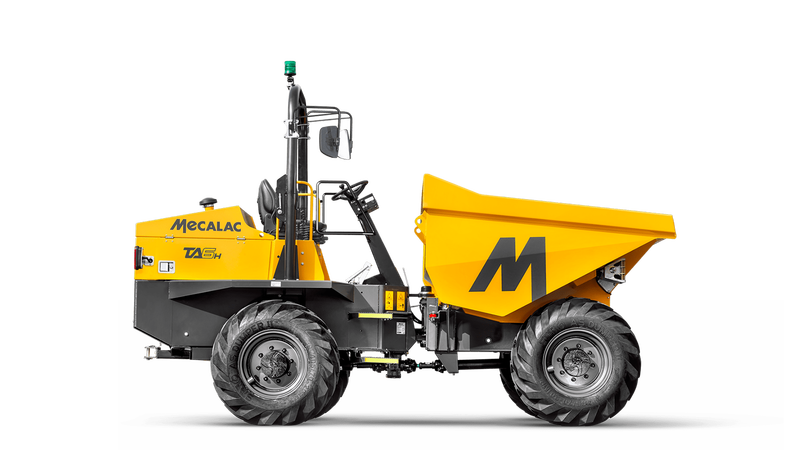

Designed for the medium to large job site the 55kw (74hp) engine powered TA6 offers versatility for your material movement. With a skip payload of 6000kg, choose between straight tip skip for bulk material movement or the 180 degree power swivel skip which allows precision placement of loads to either side of the machine. A synchro shuttle transmission provides 4 forward and 4 reverse gears with a maximum travel speed of 25kph (15mph), permanent 4 wheel drive and central articulation ensure traction is maintained in even the toughest conditions. All 6 tonne machines now feature Shield safety technology as standard with an option to upgrade to Shield plus for additional safety technology.
TA6 in action
Specifications
| Total operating weight | 4195 kg (9248 lb) / 4335 kg (9557 lb) | |
|---|---|---|
| Engine power | 55 kW (74hp) - Stage V | |
| Skip type | Front / Swivel | |
| Payload | 6000 kg (13,230 lb) | |
| Maximum skip capacity (Heaped) | 3.1 m³ (4.1yd³) | |
| Transmission (Road) | Synchro-Shuttle | |
| Travel speed | 24 km/h (15 mph) | |
| Operator environment | ROPS foldable bar | |
| Overall width | 2300 mm (7’7”) / 2211 mm (7’3”) | |
| Overall length | 4388 mm (14’5”) / 4648 mm (15’3” | |
| Overall height | 2906 mm (9’6”) | |
| Dumping height, skip tipped | 430 mm (1’5’’) / 1126 mm (3’8’’) |
