Safety and comfort in a compact format
The 3.5MDX dumper gives you access to a premium cab environment in this compact size-class.
PERFORMANCE: The 3.5MDX is a compact and maneuverable machine, providing an effective solution for carrying high payloads in confined spaces, in any ground condition and for a large variety of applications.
COMFORT: This model adopts Mecalac’s proven MDX cab with optional air-conditioning to provide an outstanding level of operator well-being in any weather condition. Like all MDX models, the unique cabin layout minimizes vibration and noise, while ergonomic controls and an adjustable seat provide a relaxed environment when working for extended periods.
SAFETY: Alongside the cab conforming to ROPS / FOPS standards, safety has been prioritized by incorporating MDX design characteristics which results in easier and safer access to the cab, outstanding all-around visibility and a higher level of operator protection in any situation.

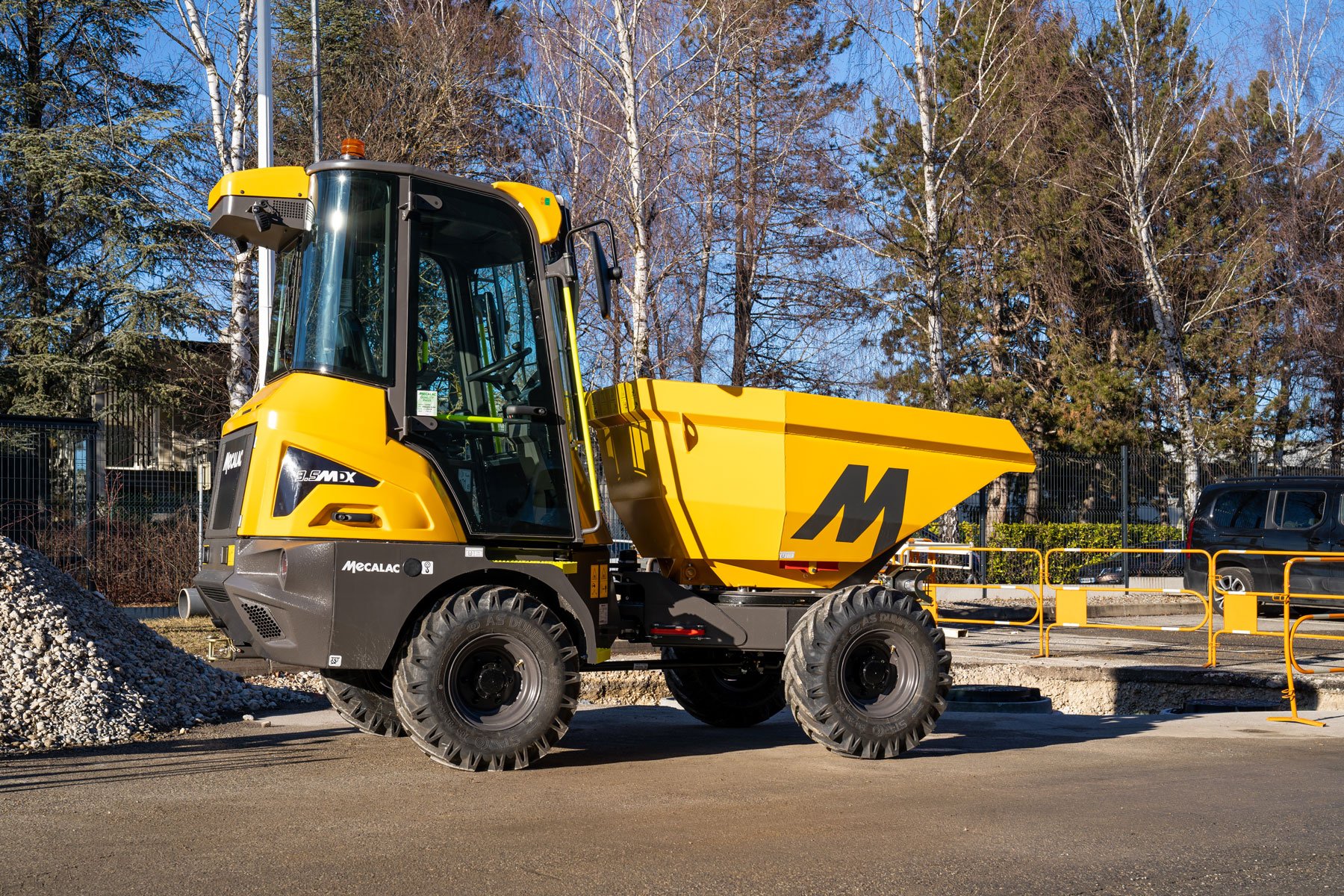

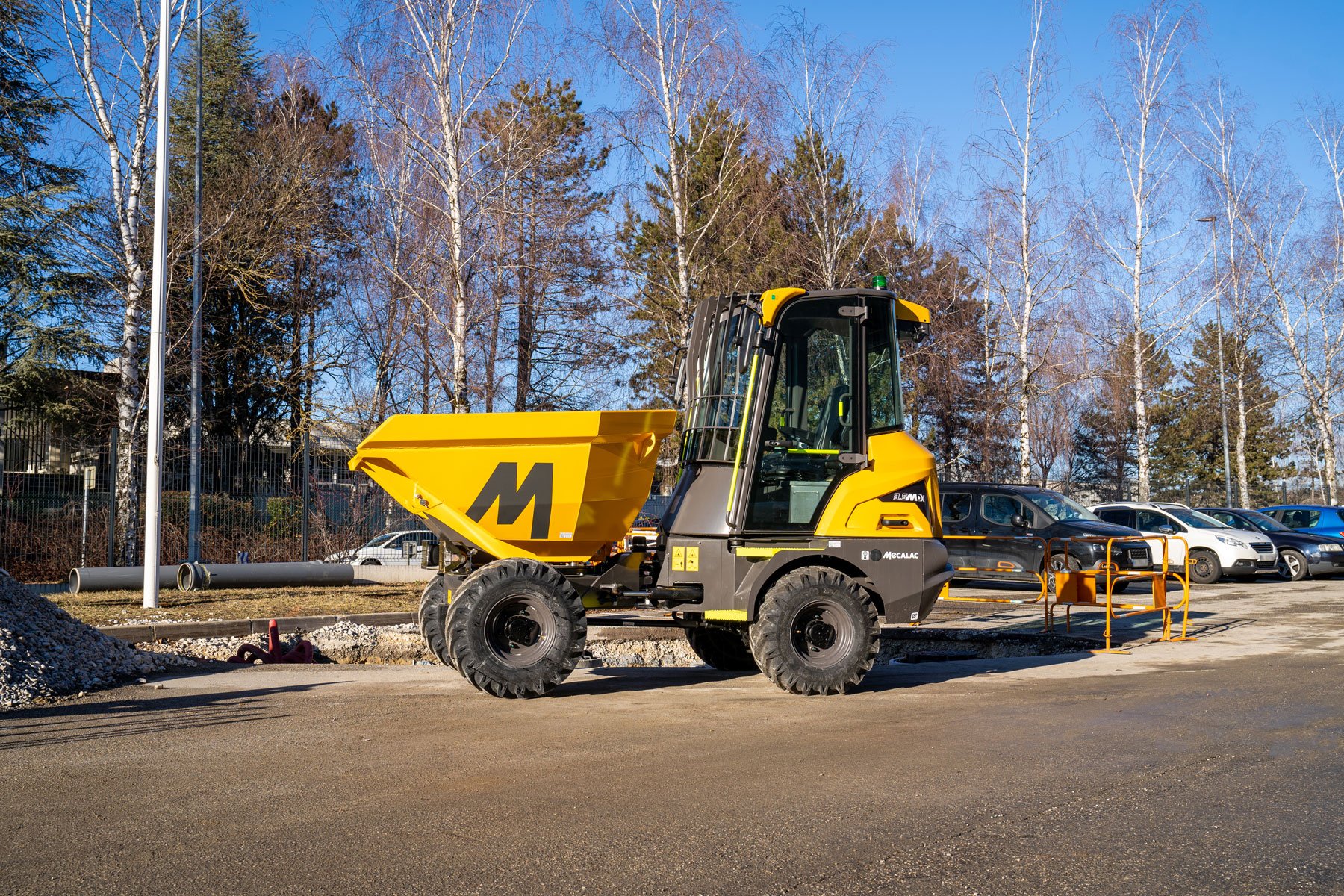

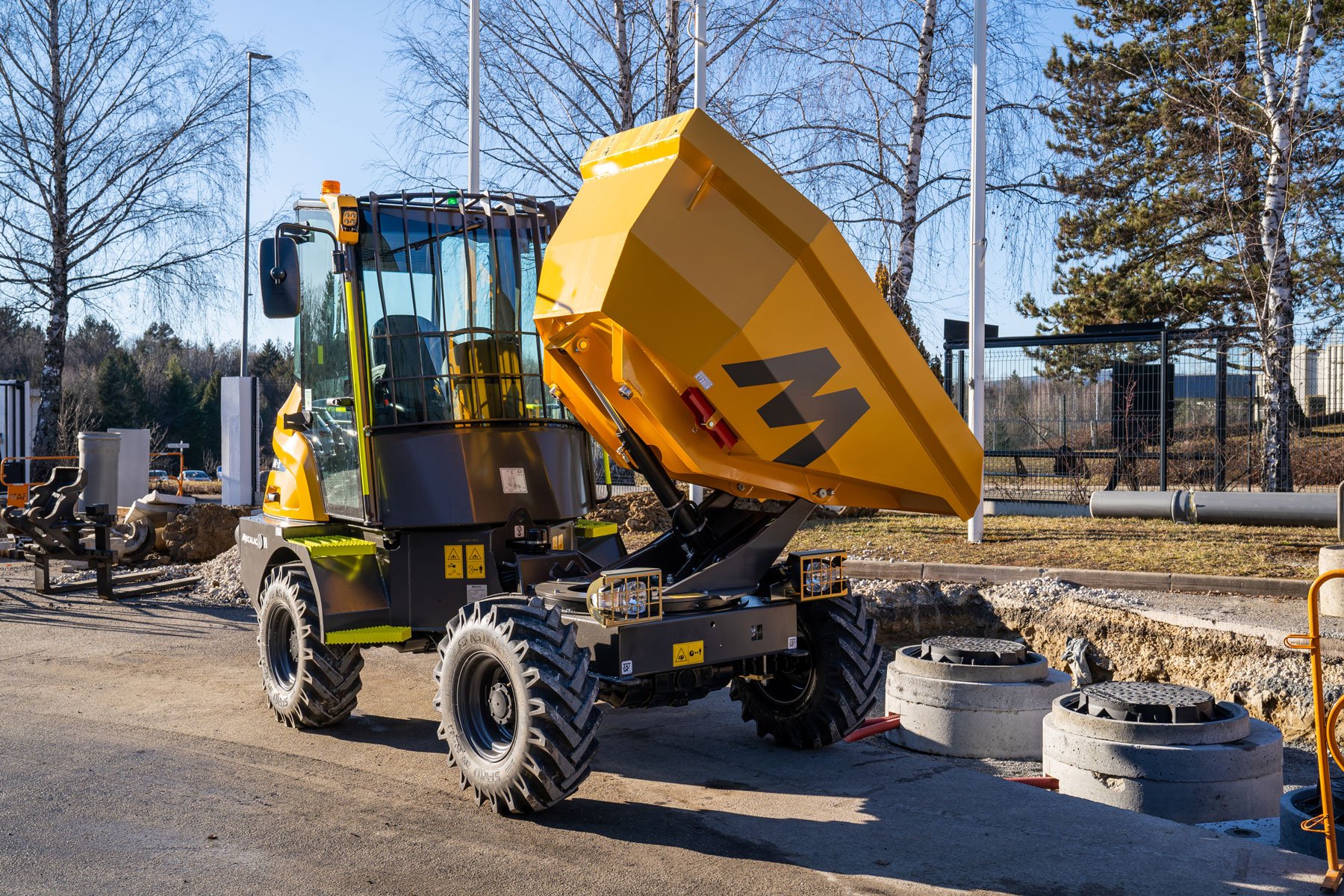

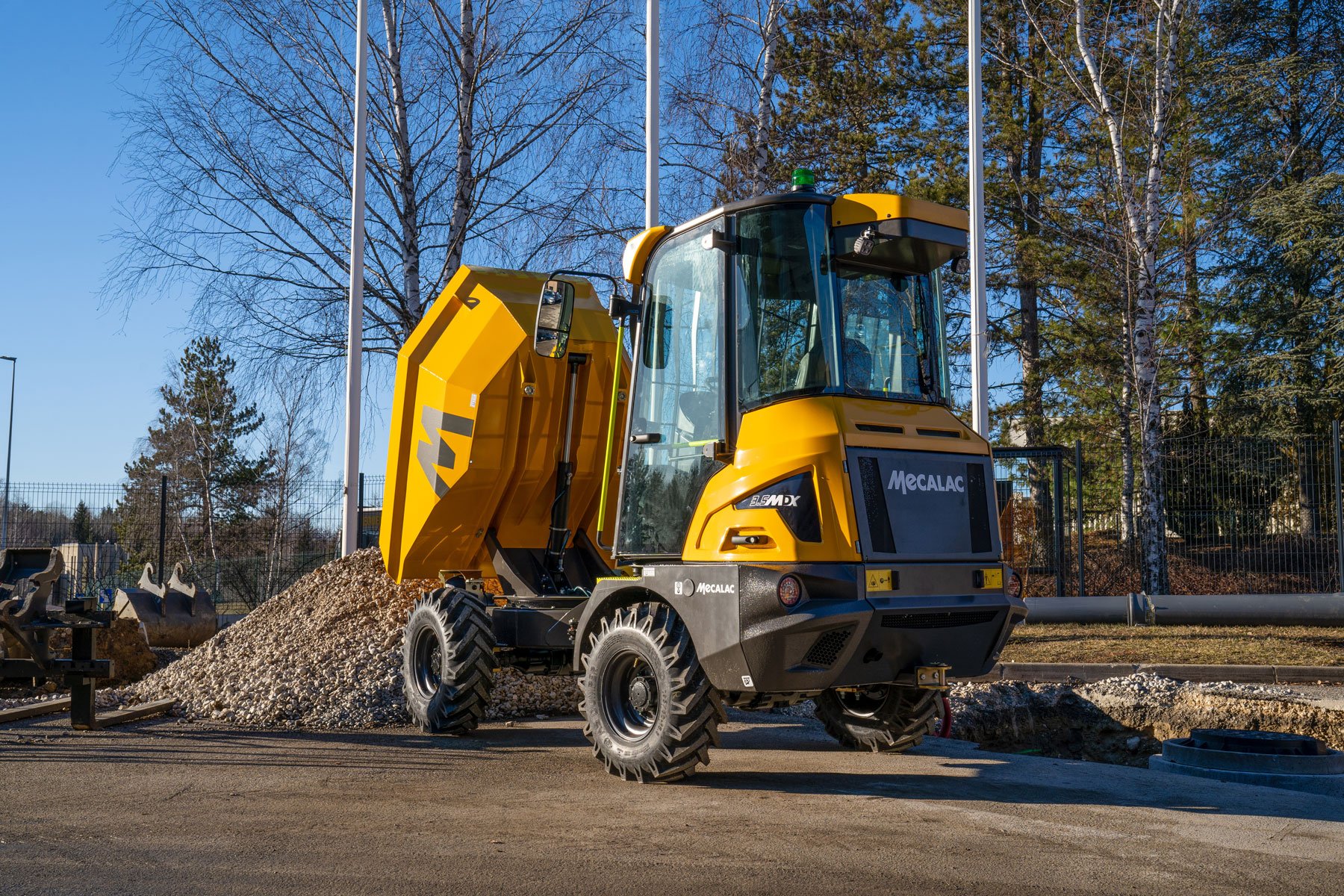

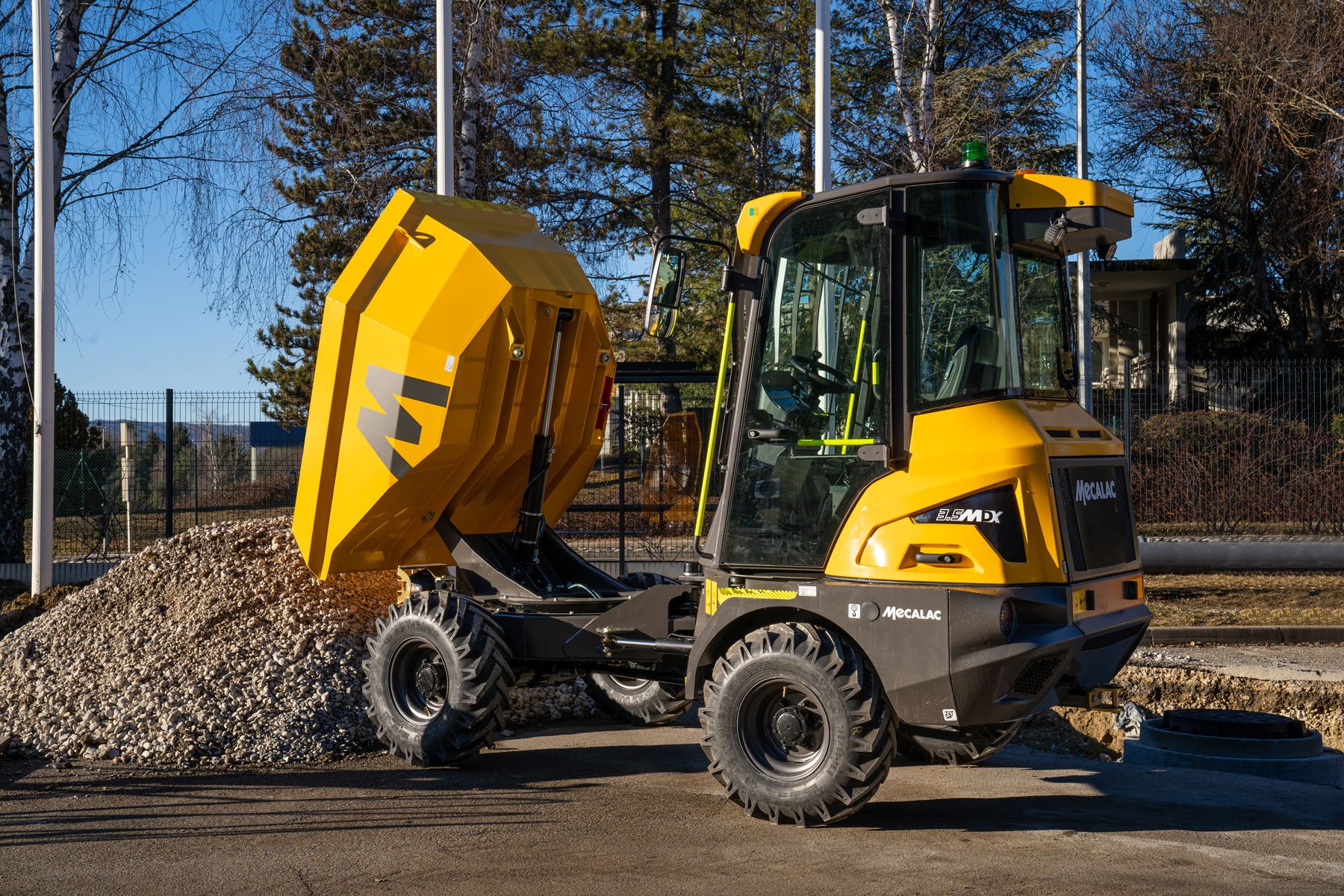

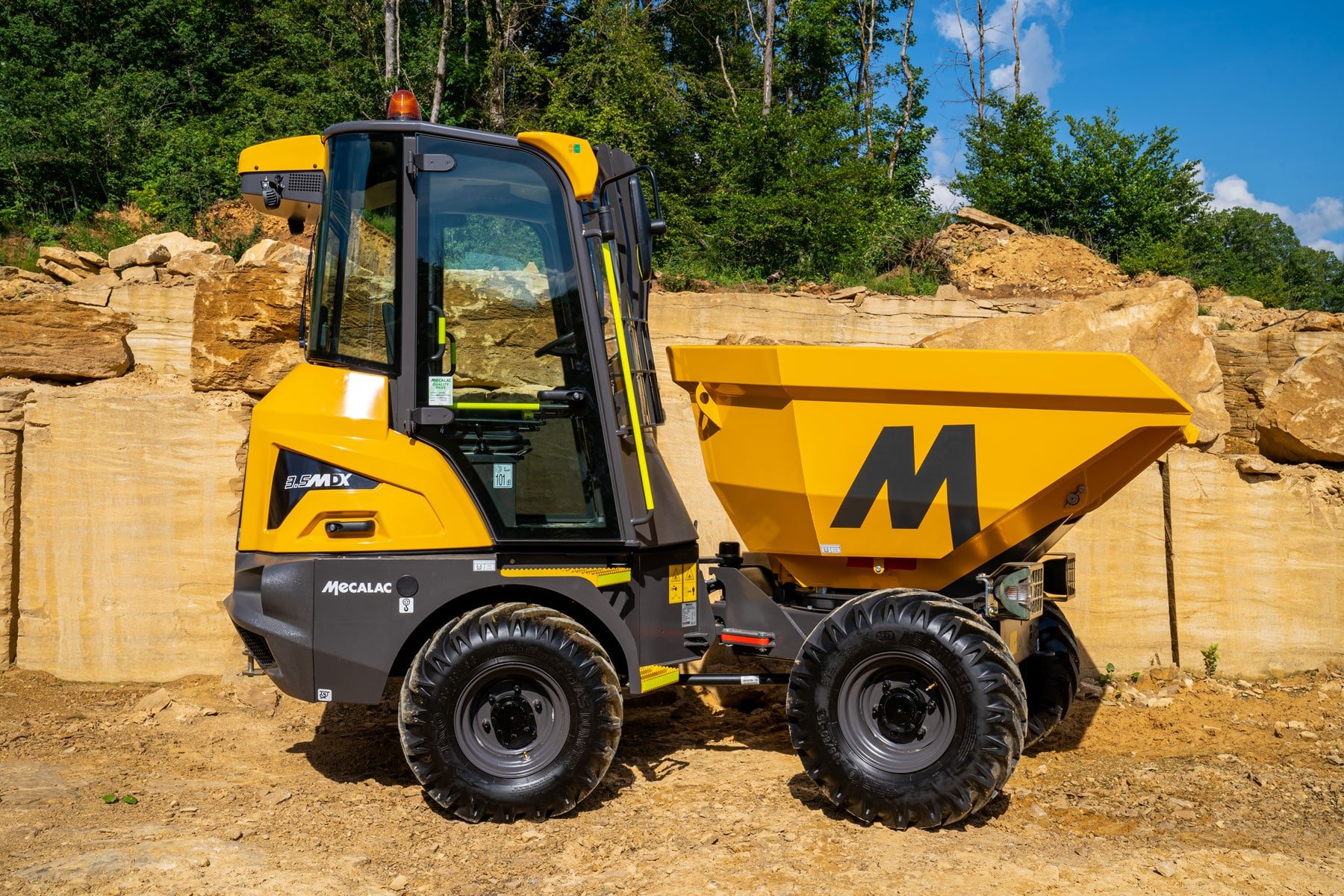

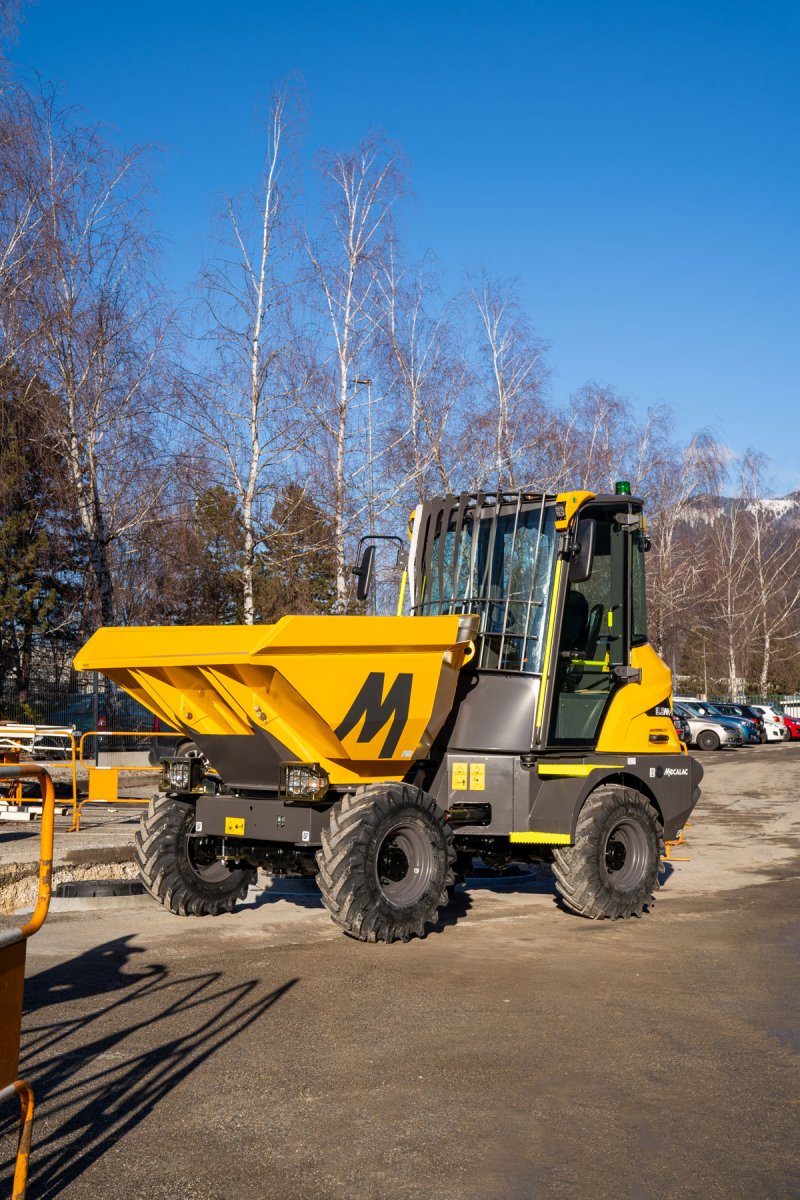

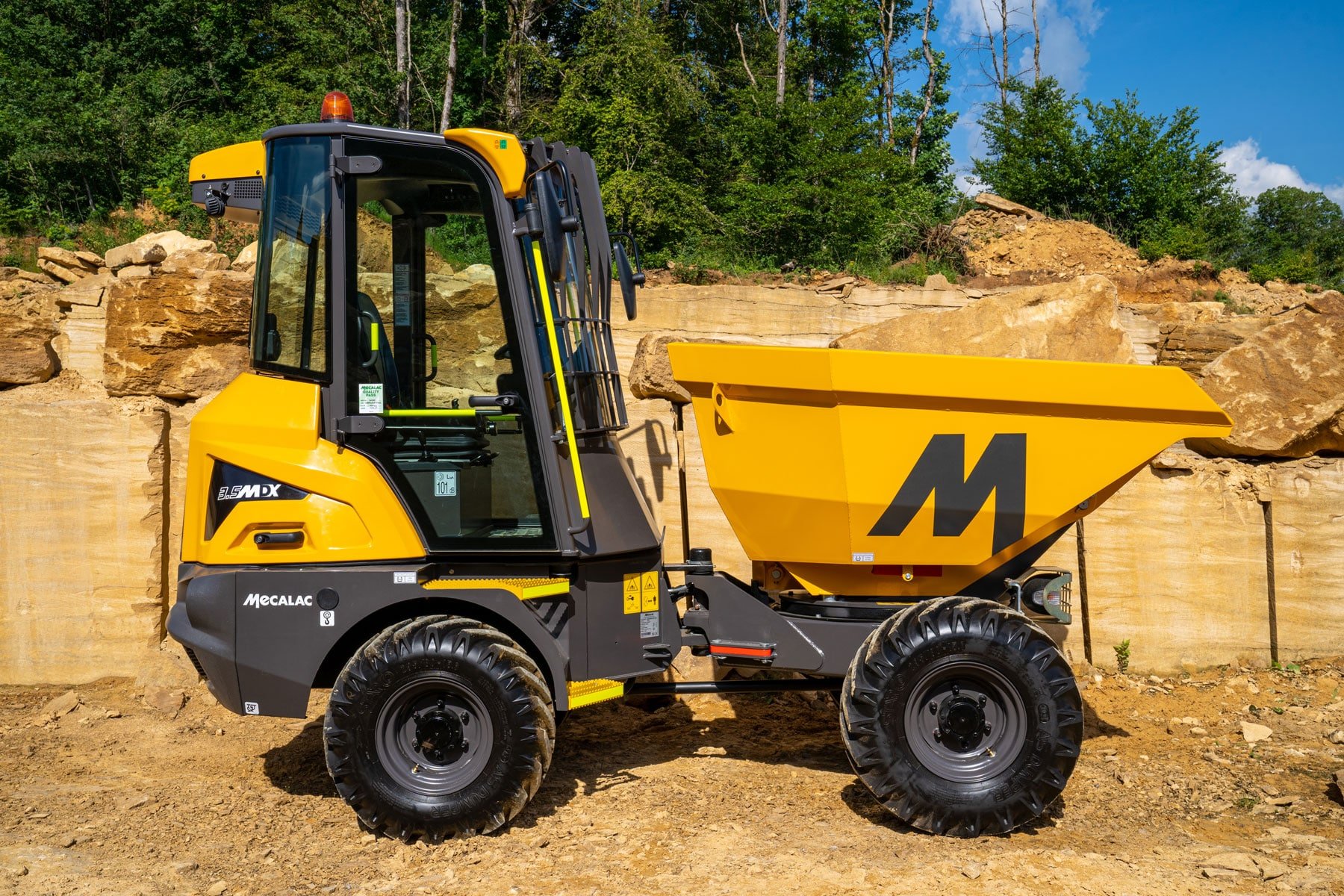

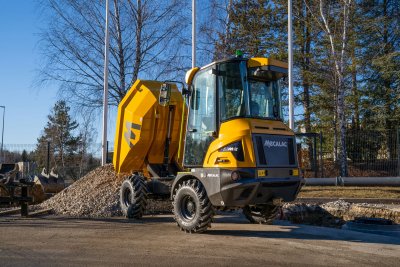

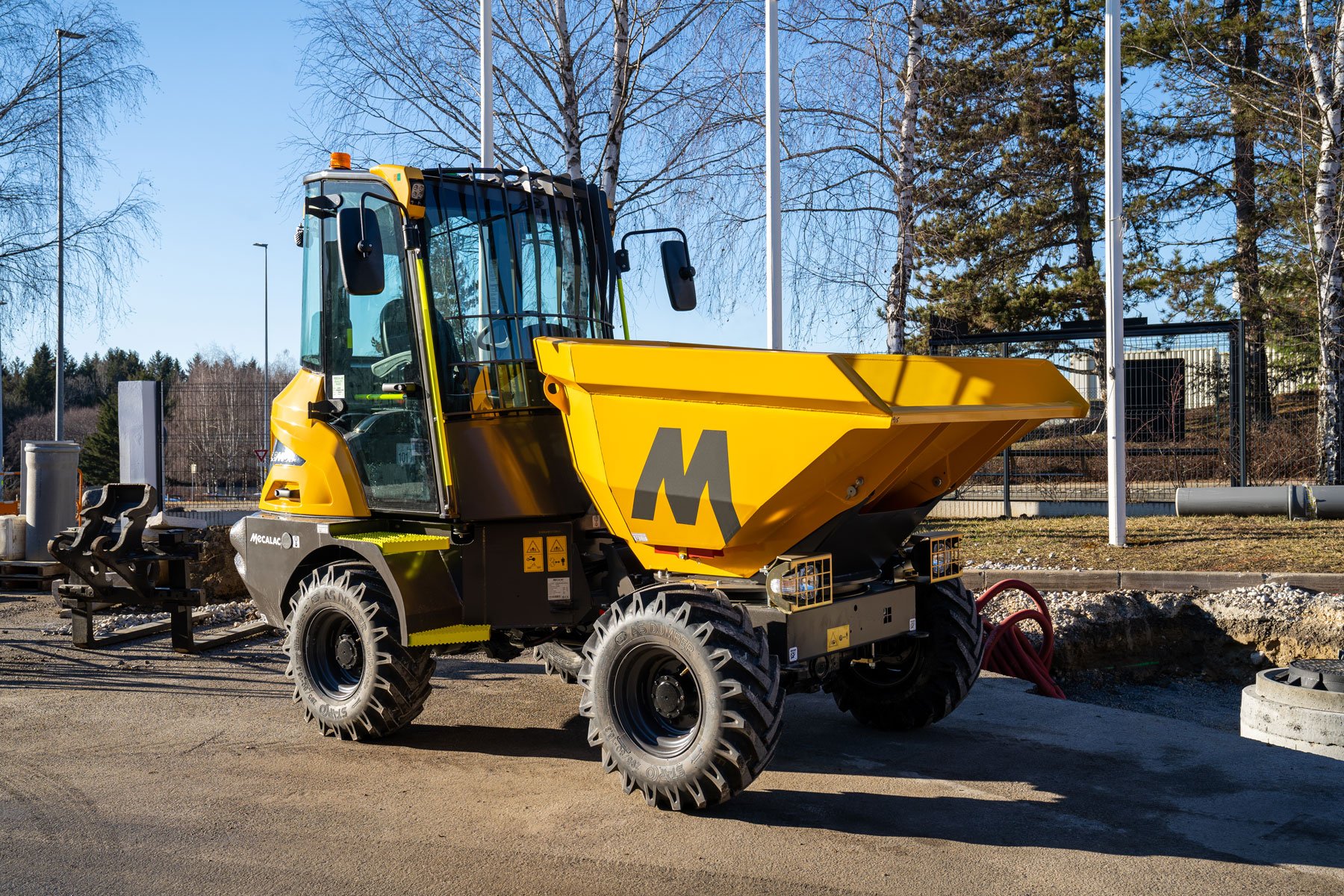

3.5MDX in action
Specifications
| Total operating weight | 2840 kg (6261 lb) to 2990 kg (6592 lb) | |
|---|---|---|
| Engine power | 37 kW (50 hp) | |
| Skip type | Front / Swivel | |
| Payload | 3500 kg (7716 lb) | |
| Maximum skip capacity (Heaped) | 1.88 m³ (2.45yd³) to 2.2 m³ (2.88yd³) | |
| Transmission (Road) | Hydrostatic | |
| Travel speed | 20 km/h (12.4 mph) | |
| Operator environment | ROPS/FOPS cab | |
| Overall width | 1846 mm (6’1”) to 1957 mm (6’5”) | |
| Overall length | 3821 mm (12’6”) to 4012 mm (13’2’’) | |
| Overall height | 2663 mm (8’9’’) | |
| Dumping height, skip tipped | 248 mm (10”) to 841 mm (2’9’’) |
