MDX - 3.5 to 9 tons
The combination of safety and design

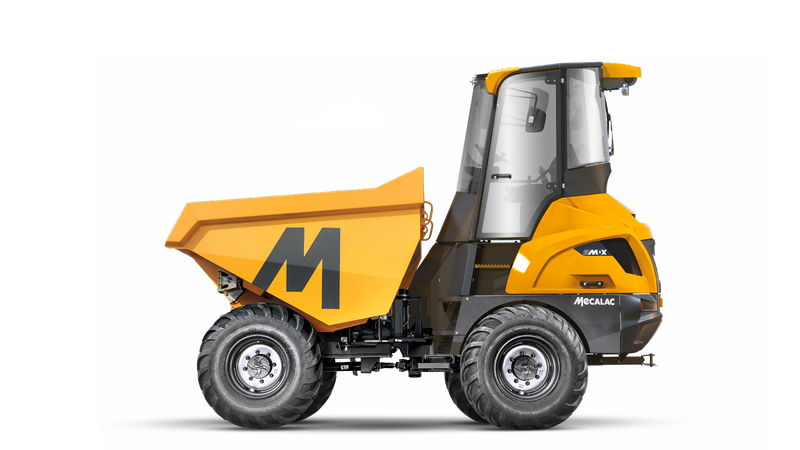

Designed with safety, comfort and performances in mind the 9MDX is a compact and manoeuvrable machine, providing an effective solution in carrying high payloads in confined spaces, any ground conditions and for a large variety of applications. With a skip payload of 9000kg, choose between straight tip skip for bulk material movement or the 180 degree power swivel skip which allows precision placement of loads to either side of the machine. Available with either a Synchro-Shuttle or hydrostatic transmission, the 9MDX can travel at a maximum speed of 25kph (15mph). The 9MDX is optionally fitted with the fully enclosed MDX cab for optimum safety and comfort, or the foldable ROPS bar, ideal for transporting between job sites and operating in low areas. All 9-tonne machines are now equipped with Shield technology as standard and an option to upgrade to Shield Plus for even safer jobsites.
SAFETY
CONSCIOUS
EXCELLENT ACCESS TO THE CABIN
AND ISO5006 COMPLIANT VISIBILITY.
Large self cleaning steps provide stair like access to the
comfortable cabin.
Large glazed areas and forward facing camera
ensure compliance to relevant standards.
Safety conscious Excellent access
Entering and exiting the machine is always safe due to the stair-like access.
Thanks to the large stair like steps and full length grab rails the operator is able access the cabin without excess effort or taking any risks.
The completely redesigned access system for the MDX site dumpers features large self clearing foot steps organised like a stairway, the solid back plate significantly reduces the risk of material build up on the steps, increasing safety. With a full length hand rail located on the A-pillar and a door mounted hand rail, 3 points of contact can be easily maintained when accessing the cabin.
Safety conscious Operators Environment
Whether the fully glazed cabin or ROPS/FOPS canopy with windscreen, operator comfort and ergonomics is always considered.
The unique design of the Mecalac MDX range of dumpers is that the Cabin or FOPS canopy are mounted on isolating mounts designed to reduce the vibration and noise transmitted to the operator.
Well positioned operators controls ensure a comfortable working environment for the operator.
Safety conscious
Visibility
ISO5006
compliant
Excellent all around natural visibility
and a forward facing camera ensures a safe machine on site that is fully compliant.
The cabin or FOPS canopy feature wide A pillar positioning and a curved front windscreen to ensure that natural visibility is maximised, combined with the fully integrated dash board there are no extra screens or brackets that could hamper visibility. The addition of the forward facing camera ensures compliance to ISO5006.
OPTIMAL
PERFORMANCE
MDX machines are equipped with numerous technical characteristics for optimal efficiency on all types of terrain.
- Off-road mobility
- Robustness built in!
- Versatility
Performance
Off-road
Mobility
An articulated and oscillating chassis ensures the mdx range of dumpers have excellent manoeuvrability and off-road capability.
All mecalac site dumpers are designed with high ground clearance to enable operation on the roughest terrain, Permanent 4 wheel drive and large oscillation angles ensure the wheels keep in contact with the ground and maintain traction in all conditions.
Large turning angles ensure the machines remain manoeuvrable so that access to diffi cult locations remains possible with the 9MDX being the most manoeuvrable dumper in its class!
Performance
Robustness
built in!
65 years of dumper production
has lead to machines designed specifically to meet the tough demands of new construction sites.
‘Rental tough’ site dumper design has ensured that Mecalac site dumpers have remained a long lasting and reliable part of your business. The use of solid rear panels ensures the highest level of protection to the cooling pack and engine, the latest design also see the addition of LED lights that are recessed into the casting for excellent protection.
Performance Versatility
Whether carrying out bulk material
movement or working in confined spaces
we have a skip design suitable.
Choose between the straight tip skip and the swivel tip skip to match the needs of your job site. Straight tip skips offer large volumetric capacity, perfect for bulk material movement.
Swing tip skip allows the machine to deposit loads anywhere within a 180 degree arc, this allows machines to unload into trenches whilst working in a single lane of traffic.
9MDX in action
Specifications
| Total operating weight | From 5055 kg (11,144 lbs) to 5795 kg (12,776 lbs) | |
|---|---|---|
| Engine power | 55,4 kW (74 hp) - Stage V | |
| Emissions standards | Stage V | |
| Skip type | Front / Swivel | |
| Payload | 9000 kg (19,842 lb) | |
| Maximum skip capacity (Heaped) | 4.5 m³ (5.9yd³) | |
| Transmission (Road) | Synchro Shuttle / Hydrostatic | |
| Travel speed | 25 km/h (15,5 mph) | |
| Operator environment | ROPS foldable bar or ROPS/FOPS cab | |
| Overall width | From 2364 mm (7’9”) to 2389 (7’10’’) | |
| Overall length | From 4587 (15’1’’) to 4735 (15’6’’) | |
| Overall height | From 3384 mm (11’1”) to 3389 (11’1’’) | |
| Dumping height, skip tipped | From 462 (1’6’’) / 1171 (3’10’’) |
