Compact perfection

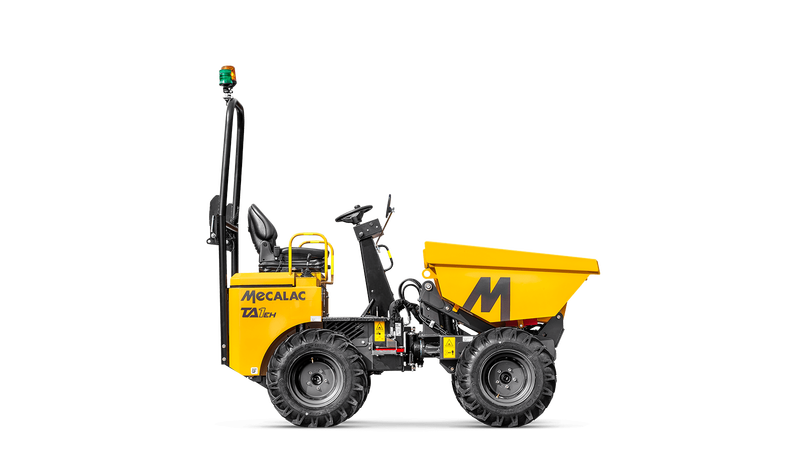

The TA1EH dumper is the epitome of compact convenience of the TA-SERIES, blending size with seamless usability excellence.
With a skip payload of 1000 kg (2,207 lb), a maximum machine width of 1.1 m (3’7’’) and the best-in-class turning radius of 4.6 m (15’1’’), the TA1EH is perfect for the smallest of worksites. The elevating skip means loads can be tipped directly into a skip or truck. Automotive-style hydrostatic transmission is easy to operate: a direction control lever and throttle pedal are all you need to drive, automatic braking is activated when the throttle pedal is released, increasing safety on site.
TA1 in action
Specifications
| Total operating weight | 1375 kg (3,031 lb) | |
|---|---|---|
| Engine power | 17.5 kW (23hp) - Stage V | |
| Skip type | Front Elevation | |
| Payload | 1000 kg (2,204 lb) | |
| Maximum skip capacity (Heaped) | 0.54 m³ (0.71yd³) | |
| Transmission (Road) | Hydrostatic | |
| Travel speed | 12 km/h (7.5 mph) | |
| Operator environment | ROPS foldable bar | |
| Overall width | 985 mm (3’3”) / 1100 mm (3’7”) | |
| Overall length | 3006 mm (9’10”) | |
| Overall height | 2837 mm (9’4’’) | |
| Dumping height, skip tipped | 559 mm (1’10”) (lowered) /1602 mm (5’3”) (raised) |
